Battery review · sonnenBatterie Evo

sonnenBatterie Evo review

By CompareVolt · Updated · Last full check

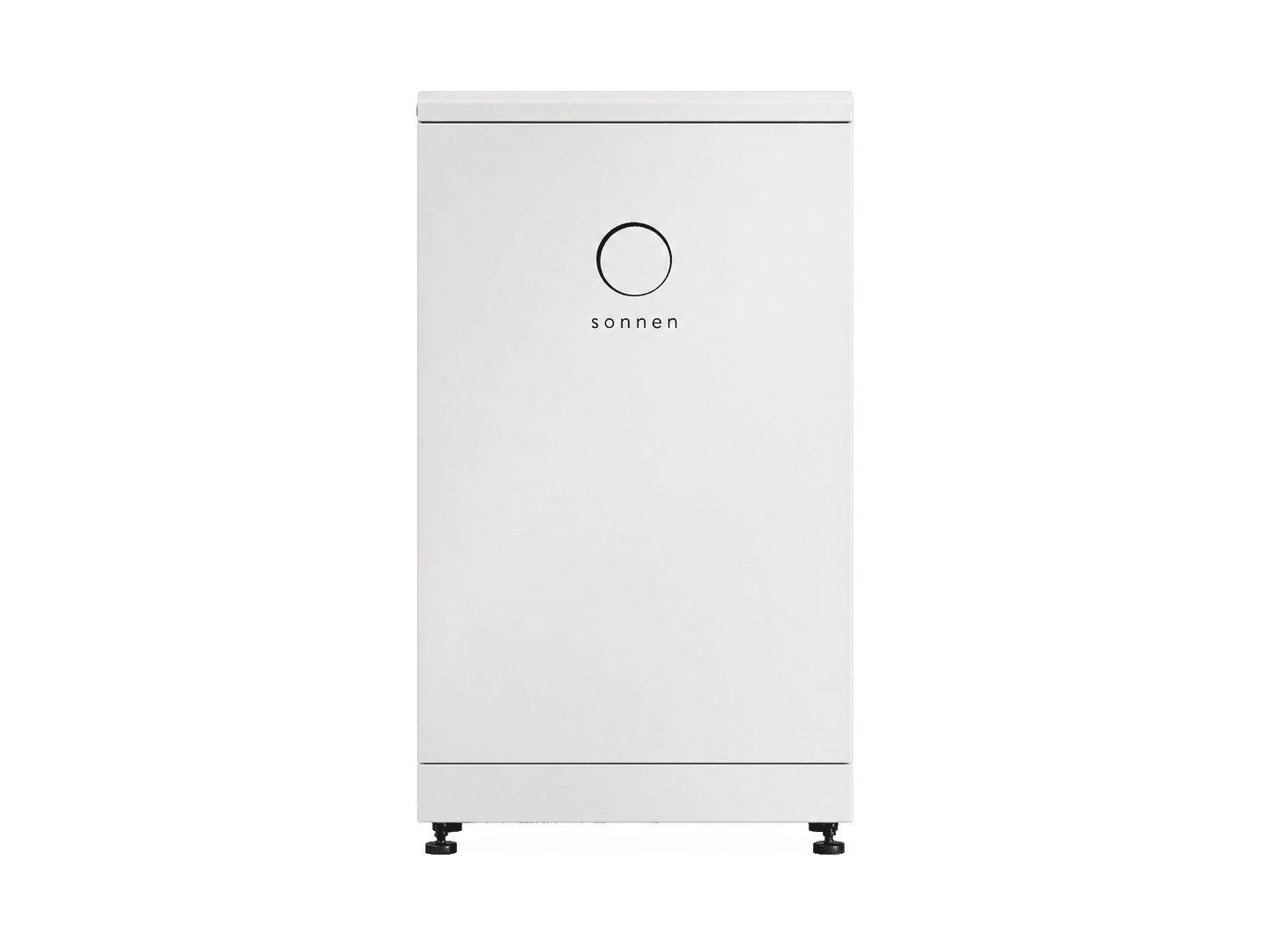

AI studio illustration: One sonnenBatterie Evo cabinet on adjustable feet.

CompareVolt rating

5.6 out of 10

Adds 10 kWh and circuit backup to existing solar, but sonnen Australia went into administration in Oct 2026.

  • Warranty10 yrs or 10,000 cycles; stay online
  • Functionality10 kWh, 5 kW; one unit, can't grow
  • VPP readiness0 programs we track list sonnen
  • Australian backingSince 2016, but in administration
How this score adds up
Rubric lines and points behind this rating
Warranty 8.5 (30%)
Term: 10 years2.0 of 3
Keeps 80% at year 102.0 of 2
Home use: 10,000 cycles, 10.0 MWh per kWh3.0 of 3
Conditions: cover depends on staying online1.5 of 2
Functionality 6.0 (35%)
Power and backup 7.5 · 60% of Functionality
Continuous power: 5 kW3.0 of 4
Backup equipment: in the reviewed configuration2.0 of 2
Backup output: up to 5 kW1.5 of 2
Three-phase homes: single-phase only1.0 of 2
Capacity and expansion 3.0 · 30% of Functionality
Largest documented system: 10 kWh1.0 of 4
Adding later: not allowed0.0 of 4
Usable figure: 10 kWh, agreed2.0 of 2
Enclosure 7.0 · 10% of Functionality
Enclosure rating: IP567.0 of 10
7.5 × 60% + 3.0 × 30% + 7.0 × 10% = 6.1, rounded to the nearest half point: 6.0
VPP readiness 2.0 (15%)
Open programs: none open0.0 of 8
Warranty room for VPP use: 10.0 MWh per kWh2.0 of 2
Australian backing 3.0 (20%)
Presence: sonnen Australia Pty Ltd, Mawson Lakes SA; administrators appointed 20 Oct 20263.0 of 3
In Australia since 20162.0 of 2
Claim route: Authorised Partner first; sonnen's service line is in the warranty1.5 of 2
Claim costs: transport, travel and labour paid to $200 in all1.5 of 3
Capped at 3.0: insolvency event recorded8.0 becomes 3.0
Overall: 8.5 × 30% + 6.0 × 35% + 2.0 × 15% + 3.0 × 20% = 5.55, rounded to one decimal: 5.6

Rubric 1.0 · scored 15 Nov 2026 · How we rate batteries · Source documents

Rated so far: 38 batteries, from 4.4 to 8.2. Compare similar batteries · Use the quote checklist

In a nutshell

What’s good

  • Integrated AC-coupled inverter. Lets you add storage and keep your existing solar.
  • Built-in backup. Backup output and control are included in the cabinet; a compatible solar inverter can recharge it during an outage.
  • 10 kWh usable. 11 kWh nominal, in one cabinet with two battery modules.
2 more good points
  • Indoor or outdoor install. Designed for either, though the installation manual prohibits direct sunlight.
  • 10 years or 10,000 cycles. Whichever comes first, with a capacity promise of 80% of nominal capacity.

What to watch

  • Administrators appointed Oct 2026. ASIC's published notice shows administrators were appointed to sonnen Australia, the company that gives the warranty, on 20 October 2026.
  • Essential circuit only. Backup supplies the designated essential-load circuit, not every circuit or all three phases automatically.
  • No combined systems. The installation manual prohibits combined systems, so do not assume another Evo can be added later.
2 more things to watch
  • Online connection required. The warranty withholds its assurance against faults if the battery is offline or software updates are not performed.
  • $200 service cost cap. The warranty caps covered transport, travel and labour costs at $200.

Good fit for: Homes adding storage to existing solar, with essential appliances that fit a single-phase backup circuit.

Look elsewhere if: You need three-phase backup or a documented path to combine several battery units.

All specifications and notes

Capacity and power

Usable capacity10 kWhUsable energy in the reviewed configuration.
Continuous AC output5 kWSingle-phase inverter and nominal backup output. Essential circuits need installer connection.
Backup surge7.05 kVA for 60 sApparent power for 60 seconds, not continuous output. Check appliance starting loads with the installer.
Warranty10 yr or 10,000 cycles10 years or 10,000 cycles, whichever comes first. Capacity floor is 80% of nominal capacity; internet and installation conditions apply.

Manufacturer’s figures

As stated in the manufacturer’s Australian datasheet. Only the IP rating feeds the score; the rest are shown for reference.

IP ratingIP56The maker’s rating for dust and water getting in, which matters on an outdoor wall.
Weight163.5 kg (approximate)Whether it can go on a wall, and how the installer has to handle it.10 kWh usable: cabinet 74 kg, two 40 kg modules, 9.5 kg plinth (p.1)
Dimensions710 × 1,400 × 427 mmWhether it fits the wall or cupboard where the installer plans to put it.W × H × D (p.1)
Charge power5,000 WHow fast it can soak up solar, or a cheap or free power window.Max continuous charge/discharge, 40 A (p.1)
Operating temperature−5°C to 45°CWhether it suits a hot garage or an outdoor wall where you live.−10°C to 50°C permitted with power output derated (p.2)
Noise< 59 dB(A)Matters if it sits near a bedroom or a neighbour’s window.Noise emission; no measuring distance stated (p.1)
Cell chemistryLithium Iron PhosphateThe type of battery cell the maker says is inside.Cell chemistry (p.1)

More specifications

Nominal capacity11 kWhUsable capacity is 10 kWh at a stated 90% depth of discharge.
Solar on backup circuitCompatible inverter up to 6 kWExisting solar connects through AC; check compatibility with the installer.
ExpansionCombined systems prohibitedThe installation manual says it must not be installed in any kind of combination; no way to add storage is documented.
LocationOutdoor-rated; no direct sunlightThe installation manual prohibits direct sunlight.
Internet connectionOnline connection requiredIf it is offline or software updates are not performed, sonnen doesn't warrant it against faults; no grace period is stated.
Warranty service cost cap$200 transport, travel, labourCombined cap for a covered claim. For an uncovered claim the customer pays those costs.

What the system needs

One Evo cabinetTwo battery modules, the inverter and control unit form the reviewed system. The headline capacity is for the complete cabinet.
Compatible solar inverterExisting solar connects through AC. For solar on the backup circuit, the documented compatible inverter limit is 6 kW.
Metering and backup wiringThe installer fits the supplied meter and current transformers, the protection and the essential-load wiring. Include this work and an Ethernet connection in the quote.

A 10 kWh home battery with its own inverter and backup output, designed for indoor or outdoor installation. This review covers one Australian Evo system.

Capacity and power

The Evo holds two battery modules in one cabinet, with its inverter built in. The Australian datasheet gives 11 kWh nominal and 10 kWh usable, at a stated 90% depth of discharge. Its rated output is 5 kW on a single-phase supply. The 10 kWh sets how much energy is stored; the 5 kW sets how much can run at once.

The 7.05 kVA backup surge lasts only 60 seconds, so it isn't extra sustained output. Ask your installer to check motor starting loads and the combined demand of your essential circuits.

Backup and installation

In a blackout, the Evo powers only the appliances on its essential-load circuit; the rest of the house goes off. A compatible solar inverter on that circuit keeps working, so solar can run those loads and recharge the battery. The datasheet limits that solar inverter to 6 kW, and keeping your existing inverter doesn't by itself mean it will work on backup.

If the battery runs low, backup stops. The operation manual says the system then tries to restart the backup supply up to three times, at times set during commissioning, and stays on only if there is enough spare solar to recharge. After the third try it shuts down. Ask the installer to explain the backup buffer (reserve) setting and these restart times.

The cabinet is rated IP 56 for indoor or outdoor use, but the Evo's installation manual lists direct sunlight among its prohibited uses. sonnen's product page calls the Evo "scalable", but the installation manual says the system "must not be installed in any kind of combination", and no document we read shows a way to add storage. Plan on 10 kWh being the most this system will hold.

Warranty and ownership

sonnen's March 2026 Australian warranty runs from commissioning for ten years or 10,000 complete recharge cycles, whichever comes first. Partial charges and discharges add up to full cycles. It promises the battery keeps at least 80% of its nominal capacity: 8.8 kWh of the 11 kWh on the datasheet, not 80% of the 10 kWh usable. The warranty lists no models. It covers "the sonnenBatterie" as first delivered, and the Evo datasheet gives the same 10 years or 10,000 cycles.

Working the warranty’s energy limits through at one full charge and discharge a day:

  • Energy limit: 10,000 cycles, about 10.0 MWh per usable kWh. At one full charge and discharge a day that is reached in about 27.4 years, so the 10-year term ends first.

Keep it online. If the battery isn't connected to the internet, or its software updates aren't done, sonnen doesn't warrant it against faults. No grace period is stated, and sonnen asks you not to disconnect it for extended periods. Cover also needs a sonnen-certified installer, recorded on the installation certificate, use that follows the operating instructions and datasheet, and spare parts and accessories that meet sonnen's original specifications. Passing the warranty to a new owner needs sonnen's written consent, which it says it won't unreasonably withhold.

For a covered claim, sonnen pays transport, travel and labour up to $200 in total, so ask who pays for a service visit beyond that. The warranty doesn't mention virtual power plant (VPP) use, and no open VPP program we track lists sonnen, so get any program's acceptance in writing. sonnen Australia Pty Ltd gives this warranty, and administrators were appointed to it on 20 October 2026 (see the next section). Australian Consumer Law rights are separate.

Brand and Australian support

Support evidence checked 15 November 2026. ASIC's published notice shows administrators were appointed to sonnen Australia Pty Limited (ACN 611 337 547) on 20 October 2026. The company appointed them itself; they are Hugh Armenis and Jason Lloyd Porter of SV Partners. This is the company that gives the Evo's Australian warranty: the warranty names the same ACN. The notice doesn't say how warranty claims, service or parts will be handled, so ask your installer before you buy.

sonnen is headquartered in Germany, and Shell agreed to acquire it in 2019. sonnen Australia Pty Limited has been registered since 16 March 2016. Its Australian contact page tells homeowners to contact their certified installer, or to use Help & Support in the my sonnen app or portal. The page and the warranty give the company's address in Mawson Lakes, South Australia, a 1300 number and a service email; the page frames the email mainly for installers.

Under the warranty, you claim first through your Authorised Partner, which the warranty defines as a partner or distributor authorised by sonnen to sell, install or repair the battery. The warranty also lists sonnen's own phone and email. sonnen or the partner may assess the fault and fix software remotely, or repair or replace the battery, possibly with a refurbished one. For a covered claim, sections 2.4(i) and 3.8 cap sonnen's share of transport, travel and labour at $200 in total. For a claim that isn't covered, you pay those costs. We found no separate process for when the installer has closed, and no response-time commitment.

We found no Australian recall or long-term study specific to the Evo (checked 21 September 2026), so nothing we read shows how often it fails. Ask who will service the unit locally, whether parts are stocked in Australia, and who pays labour and freight.

Price and alternatives

sonnen's Australian product page offers a quote form and publishes no installed price. If you ask sonnen Australia for a quote, have the cabinet, metering, essential-circuit wiring, switchboard work, commissioning and GST itemised, and confirm stock and installation timing.

For another battery with a built-in inverter, read our FranklinWH aPower X-02-AU review. Compare complete installations and the circuits they will back up, not just battery capacity. Have the installer check rebate eligibility and show any incentive separately, with its conditions.

Who it suits

The Evo suits a home that wants to keep its solar, add 10 kWh and back up a few essential circuits on one phase. It doesn't suit a home that needs three-phase backup or may want more storage later. Because administrators were appointed to sonnen Australia on 20 October 2026, ask how warranty claims will be handled before you sign.

Estimate your overnight use with the battery size calculator, then take it and a list of essential appliances to the installer. Ask for a diagram showing which circuits stay on, whether your solar can recharge the battery in a blackout, and how the system will stay online for updates.

How it compares

Reviewed configurations side by side: this review first, then the others in alphabetical order. Figures come from each manufacturer’s documents, with their conditions under each row; this is not a ranking. The full comparison links every source.

ConfigurationThis reviewsonnen sonnenBatteriesonnenBatterie Evo with two modulesSungrow SBRSungrow SBR128 battery (four modules)Tesla PowerwallTesla Powerwall 3 with Backup Gateway 2
Usable stored energy10 kWh usable, measured at the battery (DC)12.8 kWh usable, measured at the battery (DC)13.5 kWh usable, measured at the system's AC output
Conditions for Usable stored energy
sonnenBatterie Evo with two modules (this review)
At 90% depth of discharge. sonnen states this under the battery's DC specifications, although the system has its own AC inverter.
Sungrow SBR128 battery (four modules)
Test basis: 25 °C, 100% depth of discharge, 0.2C charge and discharge.
Tesla Powerwall 3 with Backup Gateway 2
Datasheet basis: 25 °C, beginning of life, 3.3 kW charge and discharge.
Household AC powerRated active power: 5 kW AC nominal, charging or dischargingRated apparent power: 5 kVA AC nominal, charging or dischargingDepends on the inverterNominal output: 5, 10 or 11.04 kW AC, dischargingCharge power: 5 kW AC continuous, charging
Conditions for Household AC power
sonnenBatterie Evo with two modules (this review)
Single phase, 230 V. The manual states nominal power at 40 °C.
Sungrow SBR128 battery (four modules)
AC output comes from the paired hybrid inverter, which this configuration does not specify. The battery's 7.68 kW DC rating is not household AC output.
Tesla Powerwall 3 with Backup Gateway 2
The datasheet lists three nominal output figures, 5, 10 and 11.04 kW, and does not say which applies to a given installation.Single phase, 230 V.
What backup coversIn an outage the Evo disconnects from the grid and supplies only the essential-loads circuit; normal circuits are not supplied. A grid-connected solar inverter on that circuit can keep running and recharge the battery.Depends on the inverterBackup Gateway 2 is the islanding device. On a three-phase supply, only the backup phase selected at commissioning is supplied in an outage, and Powerwalls on other phases stop.
Conditions for What backup covers
sonnenBatterie Evo with two modules (this review)
Backup works only if the installer connects the backup function and essential-loads circuit.
Sungrow SBR128 battery (four modules)
Which circuits stay powered depends on the inverter's backup output and the installer's switchboard design.
Tesla Powerwall 3 with Backup Gateway 2
Critical loads must be wired to the selected backup phase.Three-phase equipment belongs on the non-backup side of the Gateway, except a Tesla Wall Connector or Mobile Connector socket.
Required equipmentAn installer-wired essential-loads circuit for backup and an Ethernet connection. sonnen's backup specification lists a maximum compatible PV inverter power of 6,000 W.A compatible Sungrow hybrid inverter. Sungrow's cross-reference chart lists permitted pairings and flags where battery power limits the inverter's backup output.Backup Gateway 2 is required for grid connection, with a wired link to Powerwall 3. Fully off-grid systems are not supported.
WarrantyEnds at the first of 10 years from commissioning or 10,000 complete recharge cycles, with partial cycles adding up. Capacity will not fall below 80% of the nominal capacity on the technical data sheet during the warranty.Defect and performance cover end at 120 months from installation or 126 months from manufacture, whichever comes first, with at least 70% of initial capacity retained. Unlimited cycles for daily self-consumption and backup. Any other application, or any combination that includes one, is limited to 35.84 MWh of discharged energy, measured at the battery output on the inverter side.10 years from initial installation, with 70% of 13.5 kWh rated capacity retained at 10 years. Unlimited cycles for solar self-consumption, time-based control and backup. Any other application, or any combination that includes one, is limited to 37.8 MWh of throughput, measured at the battery AC output.
Conditions for Warranty
sonnenBatterie Evo with two modules (this review)
The retention floor is a share of nominal capacity, not usable capacity.sonnen does not warrant the battery against faults if it is not connected to the internet or software updates are not performed.Transfer to a later owner needs sonnen's prior written consent, which sonnen will not unreasonably withhold.
Sungrow SBR128 battery (four modules)
Performance cover depends on the battery's annual temperature profile: fewer than 90 days between 35 °C and 40 °C, fewer than 30 days above 40 °C, and an average below 25 °C for the rest of the year.Sungrow lists an unmonitored battery (not monitored in iSolarCloud) among its exclusions. If performance data is incomplete, Sungrow will honour at least four years from installation, or four years and six months from manufacture.Covers the listed SBR and SBH batteries only, not the inverter.
Tesla Powerwall 3 with Backup Gateway 2
Covers Powerwalls bought from Tesla or a Tesla certified installer and installed in Australia or New Zealand.If the Powerwall is not connected to the internet for an extended period or not registered with Tesla, Tesla may not honour the full 10 years. It states it will honour at least four years from installation.

Other reviewed batteries closest to 10 kWh of usable capacity.

Compare sonnenBatterie Evo side by side

Questions people ask

Is the sonnenBatterie Evo compatible with my existing solar?

Existing solar connects through AC to the Evo's integrated inverter. For solar on the backup circuit the documented compatible inverter limit is 6 kW, and keeping an existing inverter does not automatically establish backup compatibility.

Will the sonnenBatterie Evo power my whole home in a blackout?

No. During an outage it powers only the appliances on its essential-load circuit. With a compatible solar inverter on that circuit, solar can supply the loads and recharge the battery; if the battery runs low, backup stops.

How long is the sonnenBatterie Evo warranty?

Ten years or 10,000 complete recharge cycles from commissioning, whichever comes first, with an 80% of nominal capacity promise. The battery must stay online and keep its software updates performed.

Can I add a second sonnenBatterie Evo later?

No way to do it is documented. The installation manual says the system must not be installed in any kind of combination, so plan on one Evo holding 10 kWh.

How much does the sonnenBatterie Evo cost in Australia?

sonnen's Australian page offers a quote enquiry and publishes no general installed price. Ask for the cabinet, metering, essential-circuit wiring, switchboard work, commissioning and GST to be itemised.

What does sonnen Australia's administration mean for the warranty?

ASIC's published notice shows administrators were appointed to sonnen Australia Pty Limited, the company that gives the Evo's Australian warranty, on 20 October 2026. The notice doesn't say how warranty claims will be handled. Ask your installer before you buy.

Before you accept a quote

sonnen doesn’t publish a price for this battery, so the installed price comes from your quotes.

  • The quote names the sonnenBatterie Evo, confirms sonnen-accredited installation and says how claims are handled since administrators were appointed.
  • It lists the essential-load circuits, the single-phase backup limits and your appliances' starting loads.
  • Solar inverter compatibility is confirmed, including the 6 kW limit for solar on the backup circuit.
  • Cabinet, metering, essential-circuit wiring, switchboard work, commissioning and GST are itemised, with incentives shown separately.
  • Ethernet connection and who pays for a service visit are confirmed, given the warranty's $200 cost cap.

Estimate the federal battery certificates for 10 kWh usable (opens in a new tab)

Check the model in your quote

Check that your quote names sonnenBatterie Evo in the configuration this review covers.

Australian support and warranty claims

Australian presence
sonnen Australia Pty Ltd, Mawson Lakes SA; administrators appointed 20 Oct 2026
In Australia since
2016
Where claims go
Authorised Partner first; sonnen's service line is in the warranty
Claim costs
Transport, travel and labour paid to $200 in all

sonnen Australian contact details (opens in a new tab) · Warranty document (opens in a new tab) · Checked

VPPs that list sonnen sonnenBatterie

Your exact battery, inverter and address still need approval; inclusion does not confirm warranty cover. How VPPs work.

No open program on CompareVolt currently lists this family. This is not a provider eligibility decision. Browse all VPPs.

Source documents

6 documents

The documents behind this rating. Where we keep a copy, it is unmodified and dated; check the manufacturer for the latest version. We work out the rating with a fixed rubric from these documents and our VPP data. No manufacturer pays for a score or sees one before it is published.
