FranklinWH aPower X-02-AU review
By CompareVolt · Updated · Last full check

CompareVolt rating
6.9 out of 10
Suits homes keeping their solar inverter, but one unit gives 5 kW and no open VPP we track lists the X-02.
6.9 out of 10
- Warranty12 yrs or 60 MWh; must stay online
- Functionality15 kWh, 5 kW; one-phase backup
- VPP readiness0 programs list the X-02-AU
- Australian backingSince 2023; claim labour not stated
How this score adds up
| Warranty 8.0 (30%) | |
|---|---|
| Term: 12 years | 2.5 of 3 |
| Keeps 70% at year 10 | 1.5 of 2 |
| Home use: 60 MWh, 4.0 MWh per kWh | 2.5 of 3 |
| Conditions: cover depends on staying online | 1.5 of 2 |
| Functionality 8.0 (35%) | |
| Power and backup 7.5 · 60% of Functionality | |
| Continuous power: 5 kW | 3.0 of 4 |
| Backup equipment: aGate controller, in the reviewed system | 2.0 of 2 |
| Backup output: up to 5 kW | 1.5 of 2 |
| Three-phase homes: one phase backed up; three-phase loads lose power | 1.0 of 2 |
| Capacity and expansion 9.0 · 30% of Functionality | |
| Largest documented system: 60 kWh (4 aPowers; up to 225 kWh per aGate after contacting FranklinWH) | 4.0 of 4 |
| Adding later: a larger maximum is documented | 3.0 of 4 |
| Usable figure: 15 kWh, agreed | 2.0 of 2 |
| Enclosure 7.0 · 10% of Functionality | |
| Enclosure rating: IP55 | 7.0 of 10 |
| 7.5 × 60% + 9.0 × 30% + 7.0 × 10% = 7.9, rounded to the nearest half point: 8.0 | |
| VPP readiness 2.0 (15%) | |
| Open programs: none open | 0.0 of 8 |
| Warranty room for VPP use: 4.0 MWh per kWh | 2.0 of 2 |
| Australian backing 7.0 (20%) | |
| Presence: FranklinWH Australia Pty Ltd, Macquarie Park | 3.0 of 3 |
| In Australia since 2023 | 1.0 of 2 |
| Claim route: installer or seller first, then FranklinWH | 1.5 of 2 |
| Claim costs: freight for a returned unit paid with an RMA; labour not stated | 1.5 of 3 |
| Overall: 8.0 × 30% + 8.0 × 35% + 2.0 × 15% + 7.0 × 20% = 6.9 | |
Rubric 1.0 · scored 15 Nov 2026 · How we rate batteries · Source documents
Rated so far: 38 batteries, from 4.4 to 8.2. Compare similar batteries · Use the quote checklist
In a nutshell
What’s good
- AC-coupled design. AC coupling lets you retain an existing solar inverter.
- Single-unit capacity. 15 kWh usable storage in a single battery unit.
- Scalable per aGate. More batteries can share an aGate; above four parallel units, contact FranklinWH.
What to watch
- Limited backup power. 5 kW continuous output per unit limits simultaneous backup loads.
- Controller required. The aGate controller is part of the system, not an optional battery-only purchase.
- Conditional full cover. Full written cover depends on registration and internet connectivity; throughput limits performance cover.
Good fit for: Homes adding storage while retaining an existing solar inverter.
Look elsewhere if: You need a smaller first battery, more sustained power from one unit, or three-phase appliances in a blackout.
All specifications and notes
Capacity and power
| Usable capacity | 15 kWhUsable energy in the reviewed configuration. |
|---|---|
| Continuous output | 5 kWAC per unit. Peak output is 10 kW for 10 seconds. |
| Performance cover | 12 years / 60 MWhWhichever comes first; 70% retention. Registration and internet conditions apply. |
| Expansion | 4 units; ask for moreDatasheet: up to 225 kWh per aGate and 20 kW continuous system output; contact FranklinWH above four parallel batteries. |
Manufacturer’s figures
As stated in the manufacturer’s Australian datasheet. Only the IP rating feeds the score; the rest are shown for reference.
| IP rating | IP55The maker’s rating for dust and water getting in, which matters on an outdoor wall.Scored IP55 (aGate); aPower is IP67 (battery, converter) and IP56 (wiring compartment) |
|---|---|
| Dimensions | aPower 1150 × 750 × 290 mm; aGate 650 × 480 × 160 mmWhether it fits the wall or cupboard where the installer plans to put it.Height × width × depth |
| Charge power | 5 kWHow fast it can soak up solar, or a cheap or free power window.Rated input / output power, per aPower |
| Operating temperature | −20°C to 50°CWhether it suits a hot garage or an outdoor wall where you live.Same range for aPower and aGate; indoor and outdoor |
| Noise | < 30 dB(A) typical, < 44 dB(A) maximumMatters if it sits near a bedroom or a neighbour’s window.System parameter at 1 m; typical with fan off, maximum with fan on |
| Round-trip efficiency | 89%How much of the energy you store comes back out when you use it.aPower, AC to battery to AC at 50% power rating, beginning of life |
| Cell chemistry | Lithium Iron Phosphate (LFP)The type of battery cell the maker says is inside. |
More specifications
| Coupling | AC-coupledKeeps your existing solar inverter; the aPower has its own bidirectional battery inverter. |
|---|---|
| Weight | 185 kgThe cabinet needs an installer assessment for location, access and mounting. |
| Controller | aGateCoordinates the battery, solar and grid, with switching for backup operation. |
What the system needs
| aPower battery | Storage and a bidirectional battery inverter in one cabinet. |
|---|---|
| aGate controller | Coordinates the battery, solar and grid, with switching for backup operation. |
| Your solar inverter | The aPower is AC-coupled. The existing solar inverter remains a separate part of the installation. |

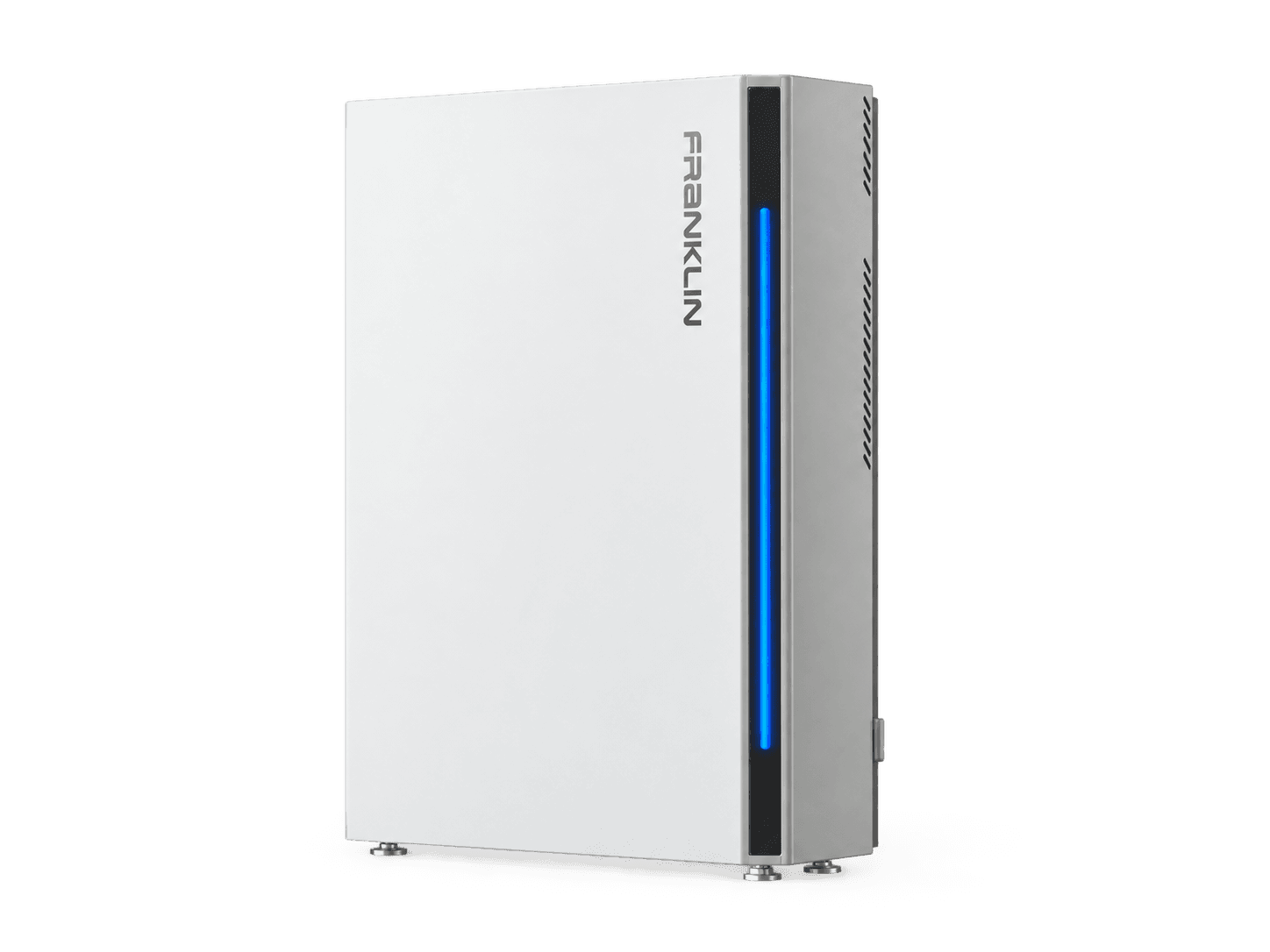

An AC-coupled home battery with an integrated inverter, paired with FranklinWH’s aGate controller.
Capacity and power
Storage capacity does not tell you how many appliances can run together. One unit stores 15 kWh but supplies 5 kW continuously. Its 10 kW peak lasts only ten seconds.
This review covers the X-02-AU, SKU APR-05K15V1-AU. FranklinWH's Australian product page named it as the current local model when checked. The older X-01-AU has 13.6 kWh usable capacity. Its manufacturer documents and catalogue entry don't establish that it is still available.
More units can share one aGate. The September 2026 datasheet allows up to 225 kWh per aGate, but continuous system output stops at 20 kW, reached with four units. FranklinWH asks you to contact it for more than four parallel batteries. Extra storage doesn't add power past that limit.
Backup and installation
FranklinWH's whole-home system page names the aGate controller as one of the system's two core components, alongside the aPower battery. The aGate product page describes the controller coordinating the battery, solar and grid. The aGate handles backup switching, but coverage depends on the circuits and equipment your installer connects. Whole-home storage doesn't mean every appliance can run at once in an outage. Ask which loads the proposed system will support, and for how long under your expected use.
On a three-phase supply, the system backs up single-phase loads on one phase only. FranklinWH's three-phase technical brief puts three-phase loads on the main board, so they lose power when the grid goes down. The setup also needs three-phase meters, ordered separately: two with three-phase solar, one with single-phase solar.
The 185 kg cabinet needs an installer assessment for location, access and mounting. FranklinWH's aPower X support article describes an AC-coupled battery with its own bidirectional inverter, so you keep your solar inverter, but that still needs a designed and installed battery system.
Warranty and ownership
The X-02-AU's performance guarantee is 70% retained capacity at twelve years or 60 MWh throughput, whichever comes first. Throughput is the total energy passed through the battery, so regular full cycling can reach the limit before year twelve. The older X-01-AU has a 43 MWh limit.
Working the warranty’s energy limits through at one full charge and discharge a day:
- Energy limit: 60 MWh, about 4.0 MWh per usable kWh. At one full charge and discharge a day that is reached in about 11.0 years, before the 12-year term ends.
Full written cover requires an authorised seller, a FranklinWH-certified installer and registration at installation. Keep the system online: after more than 90 consecutive days offline, FranklinWH sends a reconnection notice. If connectivity isn't restored, the term drops to four years from initial installation. An unregistered installation also receives only four years. Australian Consumer Law rights remain.
The warranty PDF does not mention virtual power plant (VPP) use. No open VPP program in our data lists the X-02-AU; Origin Loop's Battery Lite list names the older X-01-AU, not this model. Confirm cover for your exact model and program in writing before you enrol.
Brand and Australian support
Support evidence checked 21 September 2026; warranty re-read 15 November 2026. FranklinWH Australia Pty Ltd has been active since 19 April 2023. The warranty names that company, in Macquarie Park, New South Wales, as importer. A local company gives you somewhere to escalate a claim.
FranklinWH's Australian support page says the installer is the first contact. If your installer is unresponsive or no longer trading, it tells you to contact FranklinWH on 1800 161 300, service-au@franklinwh.com, or its ticket portal. The June 2026 warranty sends claims to the installer or reseller first, repeats that fallback, and says FranklinWH may assign its own or an authorised partner's service personnel.
Get an RMA (return authorisation) before anything is sent back; otherwise FranklinWH will not bear the shipment cost. The remedy can be repair, a new or refurbished equivalent replacement, or in stated circumstances a depreciated purchase-price refund. The warranty does not allocate accepted-claim on-site labour, removal, reinstallation or travel costs, so get the installer's position before you buy. Australian Consumer Law rights remain separate.
We found no regulator recall or controlled Australian field study for the X-02-AU, and FranklinWH's own testimonials can't show failure rates.
Price and alternatives
Ask a FranklinWH installer for a system quote. Compare the full cost of the X-02-AU battery, aGate, backup wiring, switchboard work and installation.
Find an installer through FranklinWH ↗
For different capacity configurations, explore Sungrow SBR and AlphaESS SMILE. Compare complete systems and inverter requirements: a battery module alone is not equivalent to an aPower unit, which has its own inverter.
Have the installer confirm rebate eligibility for the exact equipment and installation before you count an incentive in your budget.
Who it suits
Check your evening use against 15 kWh with the battery size calculator. Then judge the fit from the installer's proposed backup circuits and how much power your home draws at once. For an older X-01-AU quote, confirm supply status first, and allow for its smaller capacity and 43 MWh limit before comparing it with the reviewed model.
How it compares
Other reviewed batteries closest to 15 kWh of usable capacity.
- Family reference imageiStore Smart Battery S0 review (IS-BATT-15000-S0)Rated 5.7 out of 1015 kWh usablePerformance warranty: 10 years or 18.25 MWhOne difference: WarrantyiStore Smart Battery S0 review (IS-BATT-15000-S0)5.5aPower X-02-AU (AS4777-2 2020)8.0

- Family reference imageGoodWe Lynx Home F G2 battery review (LX F16.0-H-20)Rated 6.9 out of 1016 kWh usablePerformance warranty: 10 years or 58.40 MWhOne difference: VPP readinessGoodWe Lynx Home F G2 battery review (LX F16.0-H-20)6.0aPower X-02-AU (AS4777-2 2020)2.0

- LG RESU16H Prime reviewRated 5.9 out of 1016 kWh usablePerformance warranty: 10 years or 54 MWhOne difference: FunctionalityLG RESU16H Prime7.0aPower X-02-AU (AS4777-2 2020)8.0

Questions people ask
Can I keep my existing solar inverter with the aPower X-02-AU?
Yes. The aPower is AC-coupled, so your existing solar inverter stays as a separate part of the installation. The battery still needs a designed and installed system.
How much power can one aPower X-02-AU supply?
5 kW continuous AC per unit, with a 10 kW peak that lasts only ten seconds. Storage capacity does not tell you how many appliances can run together.
How long is the FranklinWH aPower X-02-AU warranty?
70% retained capacity at twelve years or 60 MWh throughput, whichever comes first. Full written cover needs an authorised seller, a certified installer and registration; an unregistered installation, or one offline for over 90 days and not reconnected, gets four years.
How much does the FranklinWH aPower X-02-AU cost in Australia?
FranklinWH publishes no system price. Ask an installer for a quote that itemises the X-02-AU battery, aGate, backup wiring, switchboard work and installation.
Can I add more than one aPower to a system?
Yes. More batteries can share an aGate, up to 225 kWh and 20 kW continuous system output. FranklinWH asks you to contact it for more than four parallel batteries.
How long will 15 kWh last?
Divide 15 kWh by your average load: about 15 hours at 1 kW. One unit supplies at most 5 kW continuously, so heavier loads shorten the run time or need more units.
Before you accept a quote
FranklinWH doesn’t publish a price for this battery, so the installed price comes from your quotes.
- The quote names the X-02-AU (SKU APR-05K15V1-AU), not the older X-01-AU.
- The aGate controller, backup wiring and switchboard work are itemised separately.
- It lists the backed-up circuits and checks them against 5 kW continuous output per unit.
- The installer is FranklinWH-certified and confirms registration and internet setup.
- If you plan to join a VPP, you have written cover confirmation for your model and program.
Estimate the federal battery certificates for 15 kWh usable (opens in a new tab)
Check the model in your quote
Check that your quote names aPower X-02-AU (AS4777-2 2020) in the configuration this review covers.
Other FranklinWH lines: FranklinWH batteries
Australian support and warranty claims
- Australian presence
- FranklinWH Australia Pty Ltd, Macquarie Park
- In Australia since
- 2023
- Where claims go
- Installer or seller first, then FranklinWH
- Claim costs
- Freight for a returned unit paid with an RMA; labour not stated
FranklinWH Australian contact details (opens in a new tab) · Warranty document (opens in a new tab) · Checked
VPPs that list FranklinWH aPower X
Your exact battery, inverter and address still need approval; inclusion does not confirm warranty cover. How VPPs work.
No open program in our records lists this family for the aPower X-02 line. This is not a provider eligibility decision. Browse all VPPs.
Not shown: Origin Loop (Battery Lite). Its FranklinWH list doesn’t name aPower X-02.
