Battery review · B2-10.0-HV1

SAJ B2-10.0-HV1 review

By CompareVolt · Updated · Last full check

Family reference image

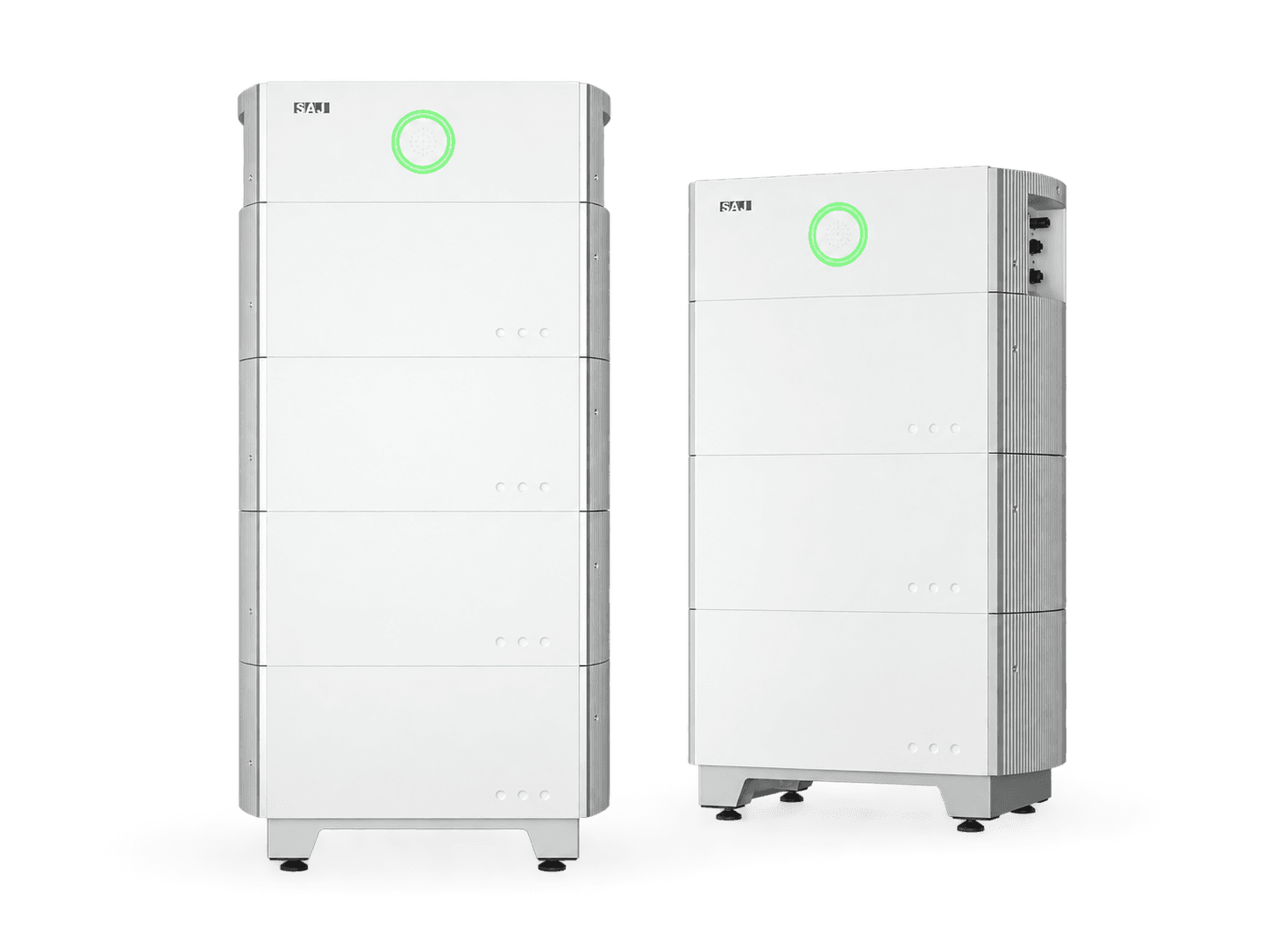

AI studio illustration: Two SAJ B2 family reference towers with four modules each; exact variant unconfirmed.
SAJ B2 home battery family shown. The pictured model and configuration are unconfirmed; this review covers B2-10.0-HV1.

CompareVolt rating

5.9 out of 10

A fit for homes on a listed SAJ H2 inverter, but its warranty promises to keep only 60% of capacity.

  • Warranty10 yrs, only 60% kept; shipment cap
  • Functionality9.6 kWh, 6.1 kW DC; needs inverter
  • VPP readiness2 programs; only 1 names the B2
  • Australian backingSince 2022; claim costs not stated
How this score adds up
Rubric lines and points behind this rating
Warranty 6.0 (30%)
Term: 10 years2.0 of 3
Keeps 60% at year 101.0 of 2
Home use: 3.06 MWh per kWh2.0 of 3
Conditions: ends 126 months after shipment; install within 6 months of shipment1.0 of 2
Functionality 6.5 (35%)
Power and backup 6.5 · 60% of Functionality
Continuous power: 6.144 kW battery DC; the inverter sets AC output2.5 of 4
Backup equipment: needs a separate SAJ H2 inverter1.0 of 2
Backup output: set by the inverter1.0 of 2
Three-phase homes: listed with three-phase H2 inverters2.0 of 2
Capacity and expansion 6.0 · 30% of Functionality
Largest documented system: 24 kWh (one 5-module B2-25.0-HV1 stack; the manual draws more clusters, no maximum)3.0 of 4
Adding later: a matching cluster in parallel; SAJ advises not mixing old and new modules2.0 of 4
Usable figure: datasheet 9.6 kWh; an older SAJ manual 9.0 kWh, product page 90%1.0 of 2
Enclosure 10.0 · 10% of Functionality
Enclosure rating: IP6510.0 of 10
6.5 × 60% + 6.0 × 30% + 10.0 × 10% = 6.7, rounded to the nearest half point: 6.5
VPP readiness 4.0 (15%)
Open programs: 1 names B2, 1 lists SAJ2.5 of 8
Warranty room for VPP use: 3.06 MWh per kWh1.5 of 2
Australian backing 6.0 (20%)
Presence: SAJ Digital Energy Australia Pty Ltd, Tullamarine VIC3.0 of 3
In Australia since 20221.0 of 2
Claim route: installer or distributor first, then SAJ1.5 of 2
Claim costs: SAJ pays "approved repair or replacement costs"; labour and freight not named0.5 of 3
Overall: 6.0 × 30% + 6.5 × 35% + 4.0 × 15% + 6.0 × 20% = 5.875, rounded to one decimal: 5.9

Rubric 1.0 · scored 15 Nov 2026 · How we rate batteries · Source documents

Rated so far: 38 batteries, from 4.4 to 8.2. Compare similar batteries · Use the quote checklist

In a nutshell

What’s good

  • Choice of H2 inverter. A separate battery and inverter lets the installer select a listed H2 model for the home's phase and power needs.
  • Flexible placement options. Ground mounting and optional wall mounting, subject to the installation manual and site assessment.
  • IP65 enclosure rating. SAJ's manual still recommends a sheltered position away from direct sun, rain and snow despite the rating.
1 more good point
  • Ten-year standard cover. 10 years from commissioning or 10.5 years from shipment, whichever is earlier.

What to watch

  • Needs an inverter for AC. The battery stack alone does not provide household AC power or establish which circuits receive backup.
  • Mixing modules discouraged. SAJ recommends against mixing old and new modules; later expansion needs a planned, compatible cluster arrangement.
  • Throughput cap on promise. The promise to keep 60% of usable capacity ends at about 29.4 MWh DC throughput if that comes first: about 8.4 years at one full cycle a day.
1 more thing to watch
  • VPP use not addressed. The warranty does not expressly address VPP participation; get written clarification before enrolling.

Good fit for: Homes choosing a complete SAJ storage installation with a documented inverter match and clearly specified backup loads.

Look elsewhere if: You need a battery with its own AC inverter, or expect to add individual modules later without checking SAJ's expansion requirements.

All specifications and notes

Capacity and power

Usable capacity9.6 kWhDatasheet basis: 96% depth of discharge. SAJ's product page still says 90%, and an older SAJ manual gives 9.0 kWh; confirm the supplied system's usable capacity and settings.
Battery rated power6.144 kW DCBattery-side rating; household AC and backup output depend on the inverter and operating conditions.
Capacity warranty10 years or ≈29.4 MWhDC throughput. 60% retained capacity, earlier limit; throughput calculated using 9.6 kWh. Standard cover also has a shipment-date limit.
InverterSeparate SAJ inverterA compatible SAJ unit is required. SAJ's declaration lists single-phase and three-phase H2 models; confirm the exact inverter and battery configuration.

Manufacturer’s figures

As stated in the manufacturer’s Australian datasheet. Shown for reference; they don’t change the score.

Weight101 kg (two battery modules); control module 11 kgWhether it can go on a wall, and how the installer has to handle it.B2-10.0-HV1; the control module is listed separately
DimensionsTwo modules 522*626*365 mm (H*W*D); control module 220*626*365 mmWhether it fits the wall or cupboard where the installer plans to put it.B2-10.0-HV1: two modules, plus the control module

More specifications

Modules and controller2 x BU2-5.0-HV1 + BC2-HV1Keep the HV1 suffix on the quote; HV5 and B2S are different variants.
Max charge/discharge current30 AOutput also depends on battery voltage and the inverter.
EnclosureIP65The manual still recommends a sheltered position away from direct sun, rain and snow.
Operating temperatureCharge 0 to 50°C, discharge −10 to 50°C
ExpansionMatching cluster in parallelSAJ advises against mixing old and new modules; have SAJ confirm the arrangement.
Lower operating voltage limit179.2 VAsk SAJ to confirm the intended inverter pairing and low-charge operation.

What the system needs

Two battery modules and controllerB2-10.0-HV1 comprises two BU2-5.0-HV1 modules and the BC2-HV1 controller. Keep the HV1 suffix on the quote.
Compatible inverterThe separate inverter converts stored DC energy to household AC. Check its exact model, phase and permitted battery configuration with SAJ.
Backup installationInclude the meter, backup wiring, required switching and commissioning in the quote. An H2 BACK-UP connection supplies the circuits designed for that output.

A two-module high-voltage battery stack for a compatible SAJ inverter. The battery, controller and inverter are separate parts of the installed system.

Capacity and power

This review covers B2-10.0-HV1: two BU2-5.0-HV1 modules with a BC2-HV1 controller. HV5 and B2S are different variants. SAJ's manual says the HV1 or HV5 suffix marks a different cell maker, so a similar-looking case doesn't tell you which battery you have.

SAJ's Australian datasheet (V1.1, June 2025) gives 10.0 kWh rated and 9.6 kWh usable, a 96% depth of discharge (the share of stored energy you can use). SAJ's newer B2 manual (V1.0) agrees, and so does the current regulator-hosted CEC data. But SAJ's download centre also lists an older B2 manual that gives 9.0 kWh usable, and its product page still advertises 90%. Get the usable capacity and settings confirmed in writing. The battery figure doesn't include inverter losses or energy reserved for outages.

The 6.144 kW rating is the battery's own DC (direct current) power, not a promise of AC power at your appliances. SAJ lists a 30 A maximum charge and discharge current, so output also depends on battery voltage and the inverter. Choose the whole system around the appliances you want to run together.

One stack takes one to five modules, up to B2-25.0-HV1 at 24 kWh usable. To add storage later, the newer B2 user manual recommends another cluster of the same configuration in parallel. It advises against mixing old and new modules, or modules at different charge levels. Its wiring diagram shows several clusters on one inverter but states no maximum, so our rating counts one stack (24 kWh) as the largest system. Have SAJ confirm the inverter, controller and expansion plan before you assume another module can simply be stacked on later.

Backup and installation

SAJ's manual says the B2 works only with SAJ's H2 high-voltage inverters. SAJ's November 2025 compatibility declaration lists it with both single-phase and three-phase H2 models. That leaves a choice of system designs. It doesn't give the battery a universal phase rating or backup output.

For example, H2-5K-T2 is a three-phase inverter with a separate BACK-UP connection. The installer must specify the circuits and phases it will supply, the loads they run at once and their starting demands. Its user manual gives a 180 V minimum battery input, just above this stack's 179.2 V lower operating limit. The declaration lists both models but doesn't explain that difference. Ask SAJ to confirm the intended pairing and how it runs at low charge, rather than assume every published battery limit is available through the inverter.

The stack is rated IP65 (a dust and water rating), yet the manual suggests an indoor or sheltered spot, away from direct sun, rain and snow. Have a qualified installer choose the position. Charging is specified from 0°C to 50°C, and discharging from −10°C to 50°C. Confirm the commissioning, monitoring and reserve settings at handover.

Warranty and ownership

SAJ's Australian standard cover ends at ten years from commissioning or ten years and six months from shipment, whichever is earlier. A separate capacity promise says the battery keeps 60% of its usable capacity, measured under set test conditions, for ten years from commissioning or until a throughput limit (the total energy passed through it), whichever comes first.

That limit is 3.06 MWh of DC throughput per usable kWh. Using the datasheet's 9.6 kWh gives 29.376 MWh DC, about 29.4 MWh. This is our calculation, not an AC energy guarantee.

Working the warranty’s energy limits through at one full charge and discharge a day:

  • Energy limit: 3.06 MWh per usable kWh. At one full charge and discharge a day that is reached in about 8.4 years, before the 10-year term ends.

Installation must finish within six months of shipment, by a professional installer, with a compatible inverter and battery. Report failures or warnings that stop the system working normally within 30 days of them appearing. Keep purchase, installation and ownership-transfer records, because a claim needs them. Moving the battery to a new site needs SAJ's permission. Australian Consumer Law rights remain.

The warranty doesn't mention VPP (virtual power plant) use. Get written confirmation for your program and how it will use the battery before you enrol.

Brand and Australian support

Support evidence checked 15 November 2026; the recall searches below date from 21 September 2026. SAJ was established in 2005, and its company page dates its Australian subsidiary to 2023. The warranty is given by Guangzhou Sanjing Electric Co., Ltd. (SAJ) and names SAJ Digital Energy Australia Pty Ltd, at a Docklands VIC address, as the Australian contact. That company has held an ABN since 8 July 2022 (checked 15 November 2026). SAJ's locations page lists it at Tullamarine VIC with an email address, and a 1800 number for SAJ Australia.

Under the B2 warranty V4.0-2-1, you start a claim with the installer or distributor who sold you the battery, and contact SAJ if needed. SAJ's direct contact details are given, but no separate route is set out for when the installer has closed. For an accepted defect, SAJ chooses repair or replacement and pays its "approved repair or replacement costs". A model no longer made may be swapped for an equivalent or refunded at market price. The warranty doesn't say whether those costs cover labour, travel, removal and reinstallation, or freight. Get the technician and who pays for what in writing. Australian Consumer Law rights are separate.

The completed ARENA/ITP test program did not test this B2 configuration. No B2-10.0-HV1 entry appeared in the ACCC, CEC or Energy Safe Victoria searches, and we verified no bounded, model-specific sample of Australian owners or installers. These evidence gaps don't establish a fault.

Price and alternatives

SAJ's Australian page offers a manufacturer product enquiry, without a fixed installed price. Ask for an itemised quote covering the modules, controller, inverter, metering, backup work, installation and GST. The live documents show what SAJ publishes now, not local stock or delivery timing.

Compare complete packages in the solar-battery catalogue. If keeping an existing solar inverter is the priority, ask installers to compare an AC-coupled alternative. If expansion matters, compare the permitted future configuration and its cost. Two open programs in our VPP data list it: Origin Loop names the B2, and GloBird lists SAJ at brand level. Each requires the battery and inverter to qualify, so confirm your exact pair. Neither an approval listing nor a family VPP listing guarantees your exact installation's rebate or program eligibility.

Who it suits

Estimate overnight use with the battery size calculator, then bring it and a list of essential appliances to the installer. A good quote settles which of SAJ's capacity figures applies, documents the inverter pairing and lists the outage loads. Get the shipment date and any future expansion design before you sign. A battery installed more than six months after shipment misses a warranty precondition.

How it compares

Other reviewed batteries closest to 9.6 kWh of usable capacity.

See all reviewed batteries

Questions people ask

Is the SAJ B2-10.0-HV1 compatible with my inverter?

It needs a separate compatible SAJ inverter. SAJ's November 2025 declaration lists both single-phase and three-phase H2 models, so confirm the exact inverter, phase and permitted battery configuration with SAJ.

How long is the SAJ B2-10.0-HV1 warranty?

Standard cover ends ten years from commissioning or ten years and six months from shipment, whichever is earlier. The capacity promise keeps 60% of usable capacity until ten years or about 29.4 MWh DC, whichever comes first.

Can the SAJ B2-10.0-HV1 be installed outside?

It is rated IP65, but the manual recommends a sheltered place away from direct sun, rain and snow. Have a qualified installer select the position.

How much does the SAJ B2-10.0-HV1 cost in Australia?

SAJ's Australian page offers a manufacturer product enquiry without a fixed installed price. Ask for an itemised quote covering the modules, controller, inverter, metering, backup work, installation and GST.

Can I add more modules to the B2-10.0-HV1 later?

SAJ's manual recommends adding a matching battery cluster in parallel and advises against mixing old and new modules. Have SAJ confirm the inverter, controller and expansion arrangement before assuming a module can be stacked on later.

How long will 9.6 kWh last?

Divide 9.6 kWh by your load: about 9.6 hours at 1 kW or 3.2 hours at 3 kW. The figure excludes inverter losses and energy reserved for outages. SAJ's product page still advertises 90% depth of discharge, and an older SAJ manual gives 9.0 kWh.

Before you accept a quote

SAJ doesn’t publish a price for this battery, so the installed price comes from your quotes.

  • The quote lists two BU2-5.0-HV1 modules and the BC2-HV1 controller, and keeps the HV1 suffix.
  • It names the exact SAJ inverter model and phase, with SAJ's confirmation of the pairing.
  • Backed-up circuits and phases, the meter, backup wiring, switching and commissioning are itemised.
  • Usable capacity is stated in writing (9.6 kWh at 96% versus the product page's 90%), with the shipment date.
  • Any future expansion design and written warranty treatment of your intended VPP are included.

Estimate the federal battery certificates for 9.6 kWh usable (opens in a new tab)

Check the model in your quote

Check that your quote names B2-10.0-HV1 in the configuration this review covers. Other sizes can differ in specifications and warranty.

Other sizes in this line: B2-5.0-HV1, 4.8 kWh usable · B2-5.0-HV5, 4.8 kWh usable · B2-10.0-HV5, 9.6 kWh usable · B2-15.0-HV1, 14.4 kWh usable · B2-15.0-HV5, 14.4 kWh usable · B2-20.0-HV1, 19.2 kWh usable · B2-20.0-HV5, 19.2 kWh usable · B2-25.0-HV1, 24 kWh usable · B2-25.0-HV5, 24 kWh usable

Australian support and warranty claims

Australian presence
SAJ Digital Energy Australia Pty Ltd, Tullamarine VIC
In Australia since
2022
Where claims go
Installer or distributor first, then SAJ
Claim costs
SAJ pays "approved repair or replacement costs"; labour and freight not named

SAJ Australian contact details (opens in a new tab) · Warranty document (opens in a new tab) · Checked

VPPs that list SAJ B2 home battery

Compare programs

These programs list the battery family. “Names B2” marks a program whose published list names this line. Your exact battery, inverter and address still need approval; inclusion does not confirm warranty cover. How VPPs work.

All programs shown require an electricity account with the provider. If you already use that retailer, a switch may not be needed; a particular plan may still be required. Credits are before electricity costs and any program fees.

2 listings · 1 recorded as naming B2 · Program A–Z

VPP programs for this battery
ProviderProgramNames B2States listedReward snapshotLast checked
GloBird EnergyZEROHERO · VPP add-onNot recordedNSW · VIC · SA · QLD (Energex)

Conditional daily and export credits

Origin EnergyLoop · Battery LiteYesNSW · SA · VIC · QLD · ACT

$1/kWh during VPP events

Reward snapshots — open the program for all credits, tariffs and conditions.
